A strongly sealed Magneti Marelli 11GV engine control unit requires a careful, methodical approach before any data is read or written. This case study covers an ECU from the VW/SEAT 1.0 MPI platform, identified by VW part number 05C 907 445 (05C907445), hardware H01 and ECU reference BC.0169254.H.
Our first priority was to open the aluminium housing without damaging the circuit board. Once inside, we identified the main Infineon AURIX SAK-TC275TP-64 (TC275) microcontroller and assessed the relevant memory and security-data areas needed for a safe cloning strategy.
Magneti Marelli 11GV case-study overview
The 11GV casing is heavily sealed. Rushing the opening stage can bend the housing, pull components from the PCB or damage fine tracks around its edge. We released the cover progressively and carefully, preserving the board and giving clear access for inspection and processor identification.

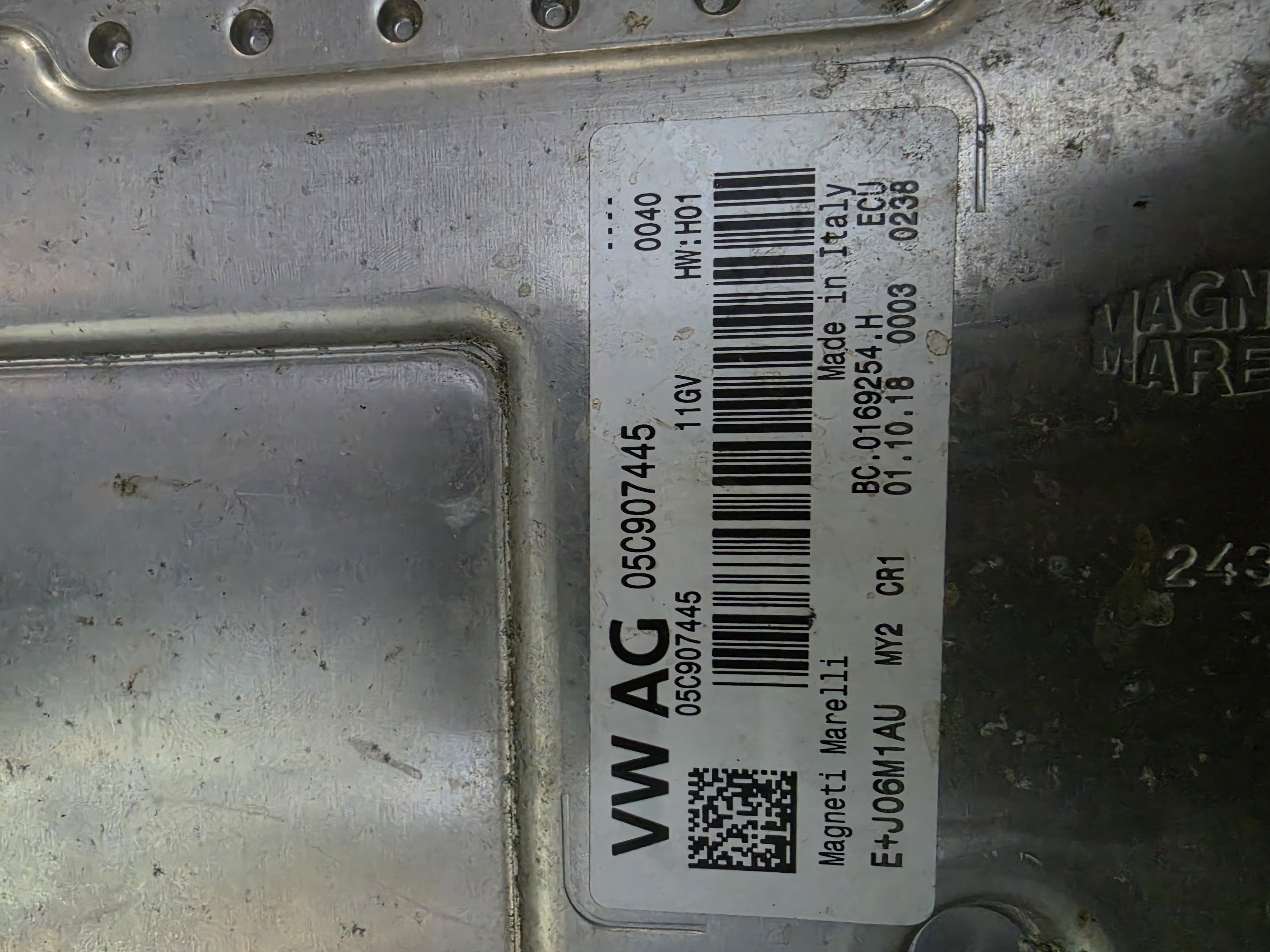

Compatibility cannot be established from the vehicle model or connector shape alone. The original and donor labels must be compared for the ECU family, VW part number, hardware revision and other relevant references. A donor that looks identical may still contain incompatible hardware or software.
Technical information
| ECU manufacturer | Magneti Marelli |
|---|---|
| ECU family | 11GV |
| VW part number | 05C 907 445 / 05C907445 |
| Hardware | H01 |
| ECU reference | BC.0169254.H |
| Vehicle application | VW/SEAT 1.0 MPI platform |
| Main MCU | Infineon AURIX SAK-TC275TP-64 / TC275 |
| Service considered | ECU data recovery, compatibility assessment and cloning to a suitable donor |
Opening the strongly sealed 11GV ECU

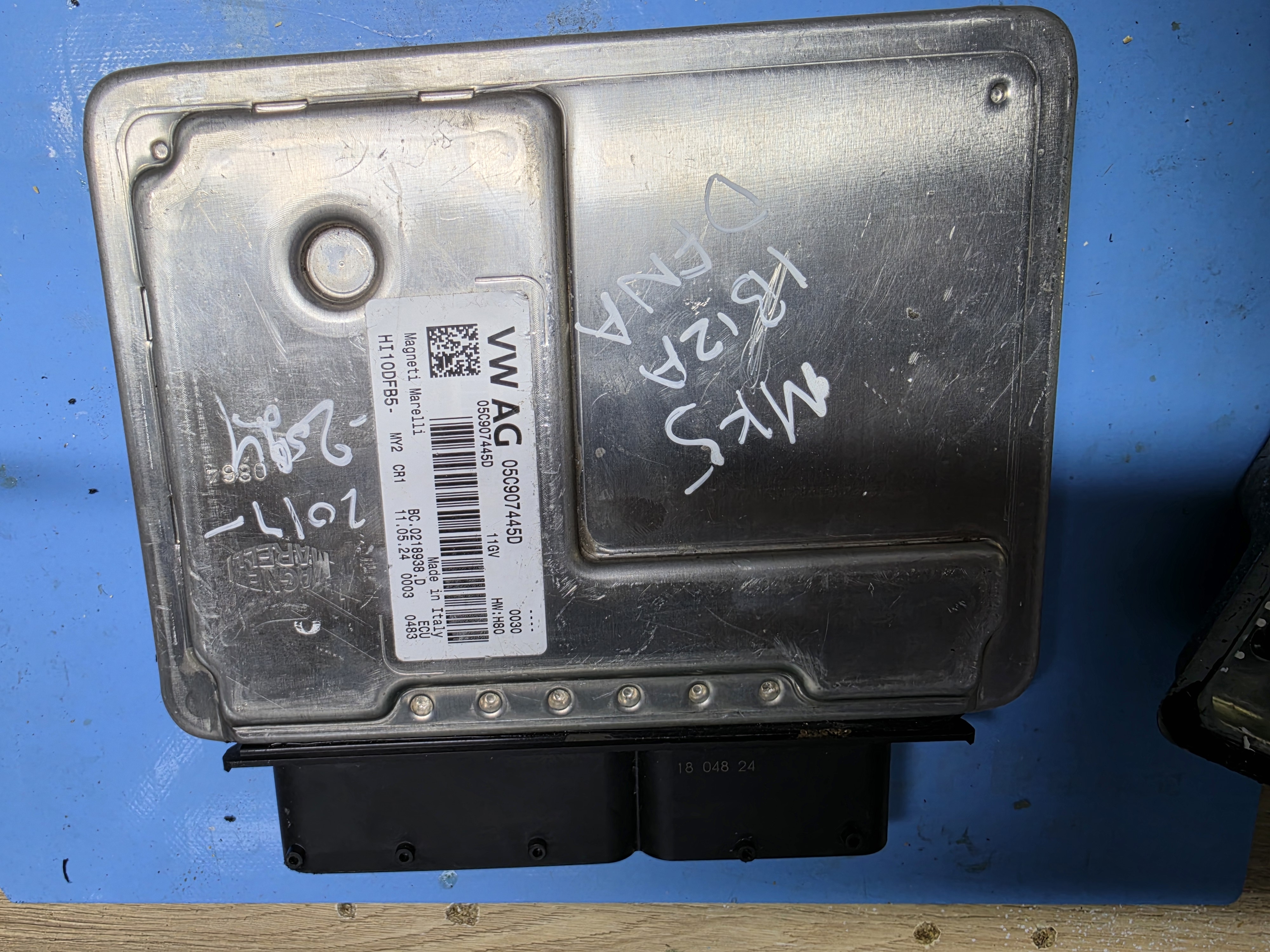

Opening this ECU was one of the most delicate stages. Strong sealant bonds the lid to the casing, while the PCB sits close enough to the working area that uncontrolled leverage can cause permanent damage. The cover was separated gradually so the board remained intact.

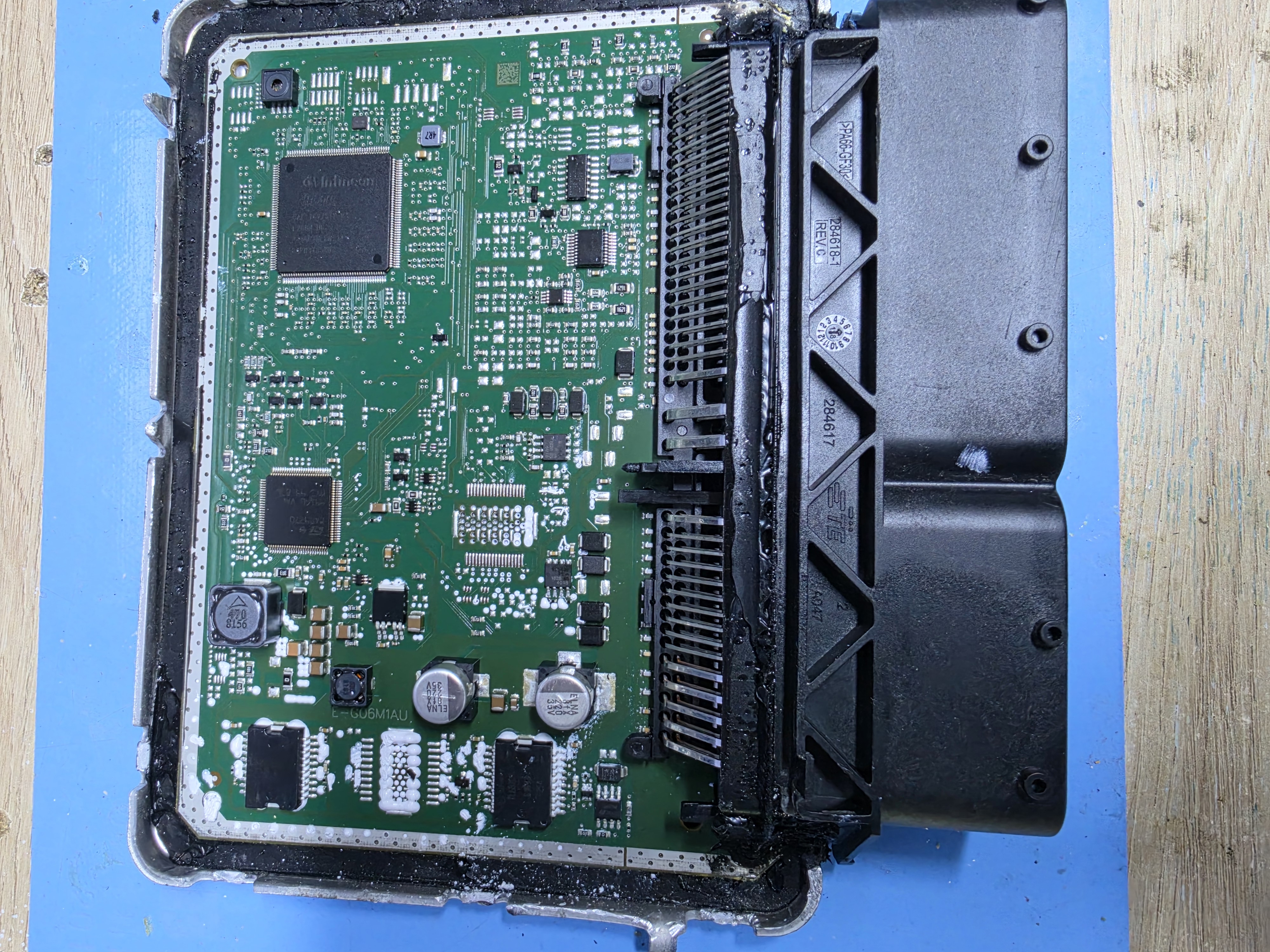

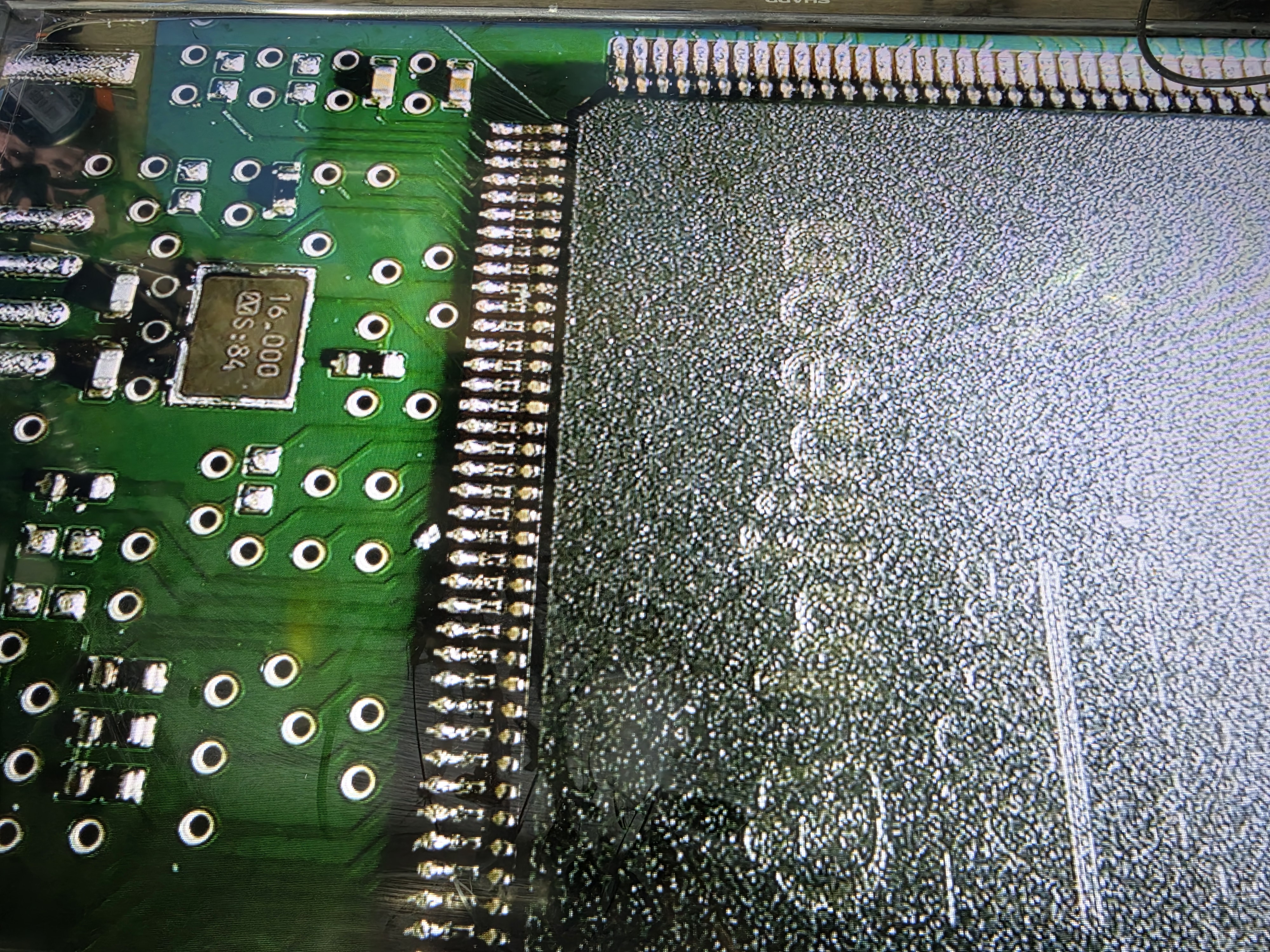

With the PCB exposed, component markings and board condition could be inspected. The TC275 was then identified so the appropriate supported programming or boot method could be selected. Connection details are specific to the ECU version and professional equipment being used; they should never be guessed from a superficially similar unit.
TC275 programming harness and processor pin references

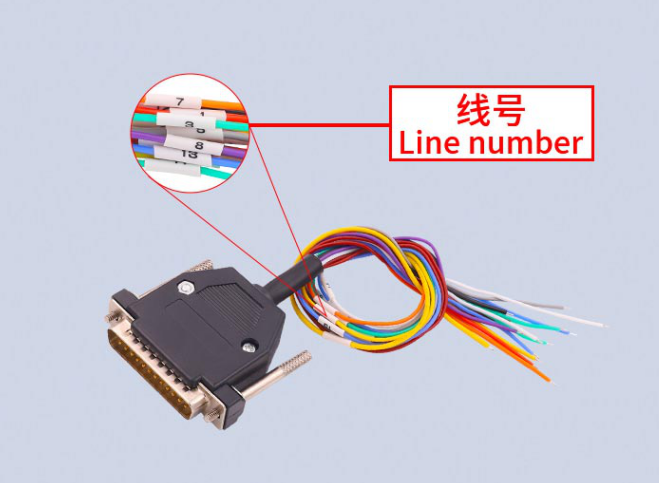

The programming harness uses numbered leads so each connection can be identified consistently. The line-number guide below shows how those markings are read; it should be used together with the correct tool documentation and the verified connection method for the exact ECU.

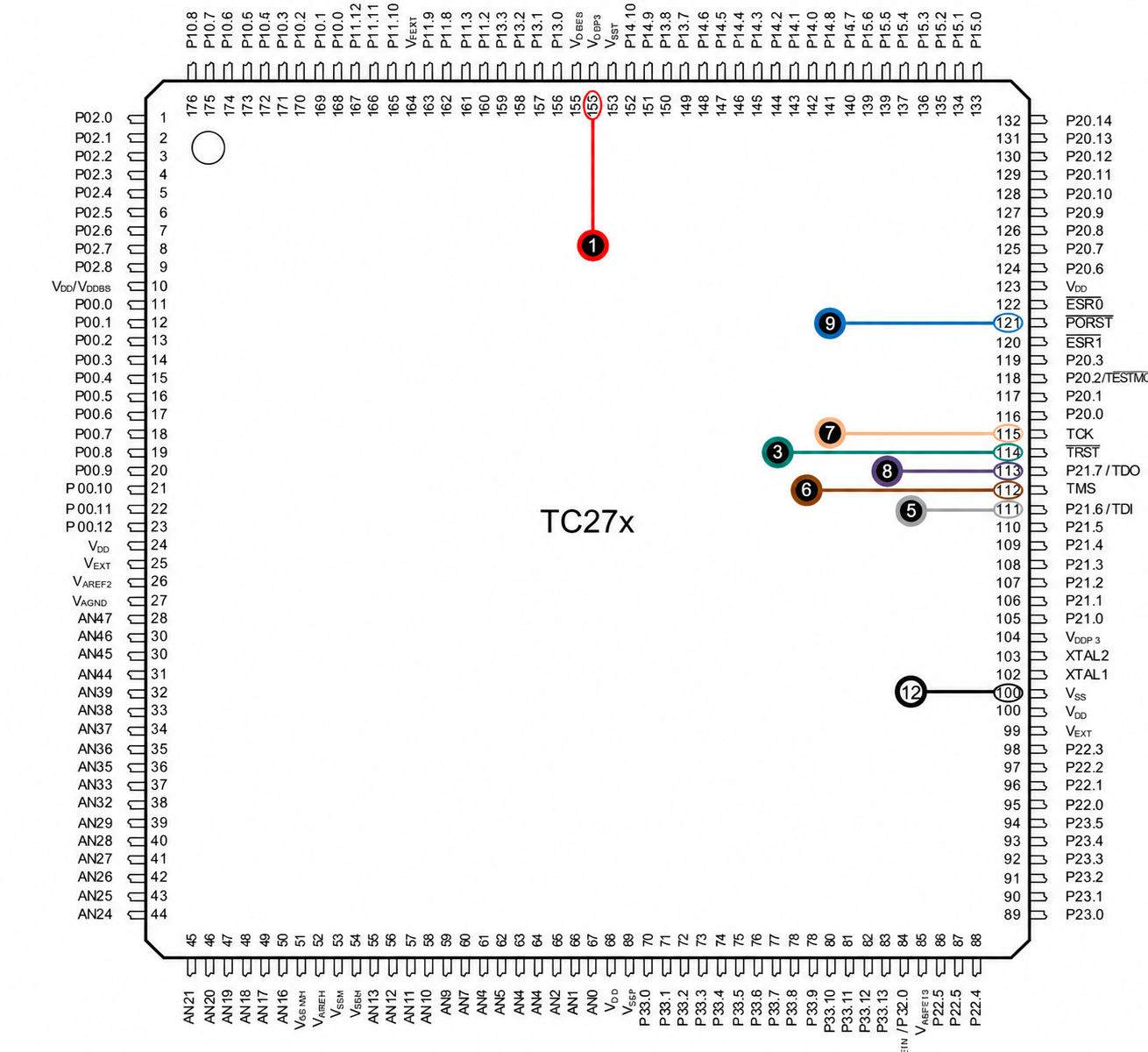

The TC27x package diagram maps the numbered programming leads to the relevant processor pins and signals. Because ECU board layouts, access points and programming tools can differ, this package-level reference is not a substitute for confirming the correct method on the specific Magneti Marelli 11GV PCB. Orientation and every connection must be checked before power is applied.
How 05C907445 ECU cloning is approached
- Identify the original and donor ECU. Compare the manufacturer, 11GV family, 05C907445 part number, H01 hardware and relevant label references. Compatibility is checked before programming.
- Open the ECU safely. Carefully release the strongly sealed housing without cutting tracks, disturbing components or stressing the PCB.
- Identify the processor and data areas. Confirm the TC275 MCU and determine which supported memory regions may contain program, configuration and security information.
- Use the correct connection method. Connect with the appropriate professional programming or boot procedure for the exact ECU and tool combination.
- Read and securely back up the original. Save all supported original ECU data before attempting any write operation. The ECU should never be written before a verified backup of the original has been made.
- Verify repeated reads. Read the available data more than once and compare it. A backup is useful only when its integrity has been established.
- Read the donor ECU. Preserve the donor data separately, confirm communication and check that the expected memory structure is available.
- Transfer the required data. Depending on the ECU and supported method, this may include FLASH, DFlash, EEPROM-equivalent data and immobiliser or other vehicle-specific security information.
- Verify the write. Use the programming system’s supported verification process and retain clearly labelled original and donor backups.
- Reseal and test. Restore the casing seal against moisture and contamination, refit the ECU and complete vehicle-level diagnostic and functional testing.
Why copying calibration FLASH alone may not create a clone
A tuning or calibration read is not necessarily a complete ECU backup. Immobiliser, identity, configuration and security information may be stored in a separate memory region such as DFlash or an EEPROM-equivalent area. Writing only a calibration FLASH can therefore leave a donor unable to authenticate with the vehicle. The data required depends on the exact ECU variant and the programming method supported for it.
Common symptoms and reasons for replacing an 11GV ECU
Possible reasons for testing, repairing or replacing an ECU include:
- No communication with the engine ECU
- A non-start condition after power, ground, wiring and immobiliser checks
- Intermittent cutting out or temperature-related failure
- Missing injector, ignition or actuator control
- Internal water, corrosion, heat or component damage
- A damaged original ECU whose recoverable vehicle data needs transferring to a donor
These symptoms do not prove that the ECU itself is faulty. Supply voltage, grounds, wiring, network communication, sensors, actuators and mechanical causes should be tested first. Our ECU testing and repair service can help establish whether repair, data recovery or replacement is the appropriate route.
VW Polo and SEAT Ibiza ECU cloning
This ECU family is associated with VW/SEAT 1.0 MPI applications, which can include VW Polo and SEAT Ibiza variants. Vehicle names alone are not a compatibility guarantee: every VW Polo ECU cloning or SEAT Ibiza ECU cloning enquiry must be checked using clear photographs of the original and donor ECU numbers and hardware.
For supported units, our ECU cloning and module programming service provides a controlled route for original-data backup and transfer. We assess each Magneti Marelli 11GV cloning job individually because ECU condition, donor compatibility and readable data determine what is possible.
Frequently asked questions
Can any 05C907445 ECU be used as a donor?
No. The 05C907445 number is an essential starting point, but the 11GV family, H01 hardware and other label and application details must also be checked. Do not purchase a donor solely because its connectors and casing look the same.
Is TC275 ECU cloning the same as remapping?
No. Remapping normally changes calibration data. TC275 ECU cloning aims to preserve and transfer the data required by a compatible replacement ECU, potentially including separate immobiliser and security information.
Can you clone the ECU if the original is completely dead?
It depends on the failure. Data recovery may be possible when normal communication has stopped, but severe MCU, memory or PCB damage can make a complete read impossible. The original ECU must be assessed before the available options can be confirmed.
Why are repeated reads important?
Repeated, matching reads help confirm that the saved data is stable rather than corrupted by a poor connection or communication interruption. No write should begin until the original backup has been verified and stored securely.
Does the ECU need to be resealed?
Yes. Once programming and verification work is complete, the housing must be cleaned and resealed appropriately to protect the circuit board from moisture and contamination before vehicle testing.
Do you offer VW ECU cloning in Birmingham?
GEM Electrical & Mechanical Repairs provides ECU cloning Birmingham customers can access locally, with postal bench-service enquiries also welcome from elsewhere in the UK. Compatibility and the condition of the original unit are checked before work is agreed.
